100 AC
2-way 10 cm coaxial kit
The 100 AC kit produces excellent results in your car’s original locations. With its compact 10 cm diameter, it develops excellent dynamics while being discreet and easy to install. As with all Access products, it features technologies that deliver outstanding sound performance in this category of kits.
A COMPLETE KIT
The kit’s woofer delivers dynamic bass and accurate midrange, while remaining impervious to humidity. The inverted-dome tweeter offers excellent spatialization and a very wide soundstage. Thanks to the integrated crossover (4.7 kHz), installation of the kit is a simple matter of plugging it in.
PERFORMANCE
Tropicalized DFS® fiberglass diaphragm, high-efficiency 72 mm motor, special coil on Kapton® support, rigid, anti-resonant ABS chassis, resistant butyl suspension: Focal engineers have chosen materials and components synonymous with uncompromising, reliable, long-lasting performance.
Specifications
- Product type :Â 2-way coaxial kit
- Membrane :
DFS - Tweeter :
100mm - Filter :Â Integrated
- Frequency response (+/- 3dB) :
70Hz – 20kHz - Impedance : 4 Ω
- Maximum power :Â 80 watts
- Maximum SPL (peak@1m) :
83.5 DECIBEL - Motor :Â Ferrite
- Nominal Impedance : 4 Ω
- Nominal power :Â 40 W RMS
- Sensitivity :Â 87.2 dB
- Surround material :Â Butyl
- RMS power :Â 40 W RMS
- Weight :Â 600 g / 1.2 lb
- Cut-Out diameter :Â 127 mm / 5 in
- Depth behind surface (Mounting depth) :Â 52.2 mm / 2.06 in
- Grilles :Â Included

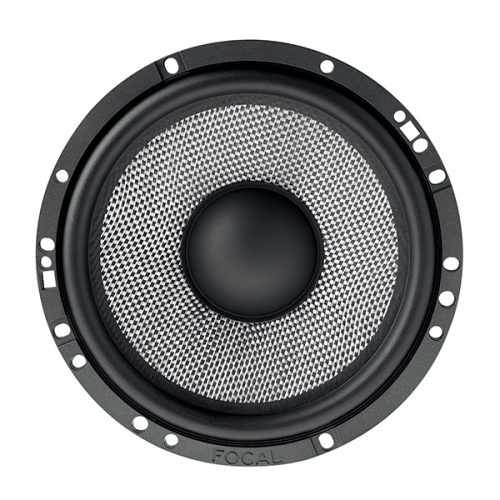

DFS membrane
Power handling
DFS® (Dual Fiberglass Structure) technology is made up of robust, reliable membranes. Composed of two glass fibres braided at 90° and sealed with a polyurethane coating, this material can be used in extreme acoustic and climatic conditions… It offers efficient power handling and good bass response.

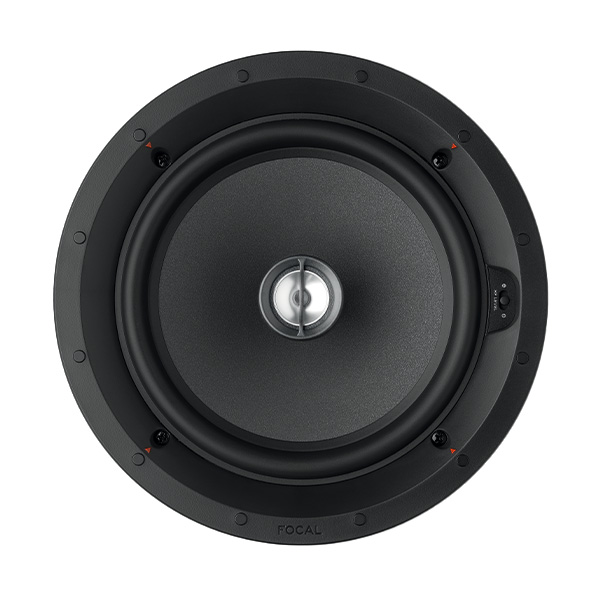

Inverted dome Tweeter
Optimum space dispersion
The inverted dome tweeter has been a Focal signature since 1981, offering the property of being a true micro-speaker. The curvature of the dome is much less pronounced than that of positive domes. This results in better space dispersion and very low directionality, unlike ribbon tweeters. The inverted dome tweeter therefore generates unrivalled dynamics, enabling sound engineers to precisely control the dosage of compression. The precision of the image (height, width and depth) is remarkable, making it easy to position each instrument. What’s more, a waveguide has been developed to perfect spatialization and further enhance the inverted dome’s very low directionality. In the horizontal plane, the frequency response is within +/- 0.5 dB. This performance guarantees an incredibly stable soundstage.
