Audison Prima AP 1P Tweeters

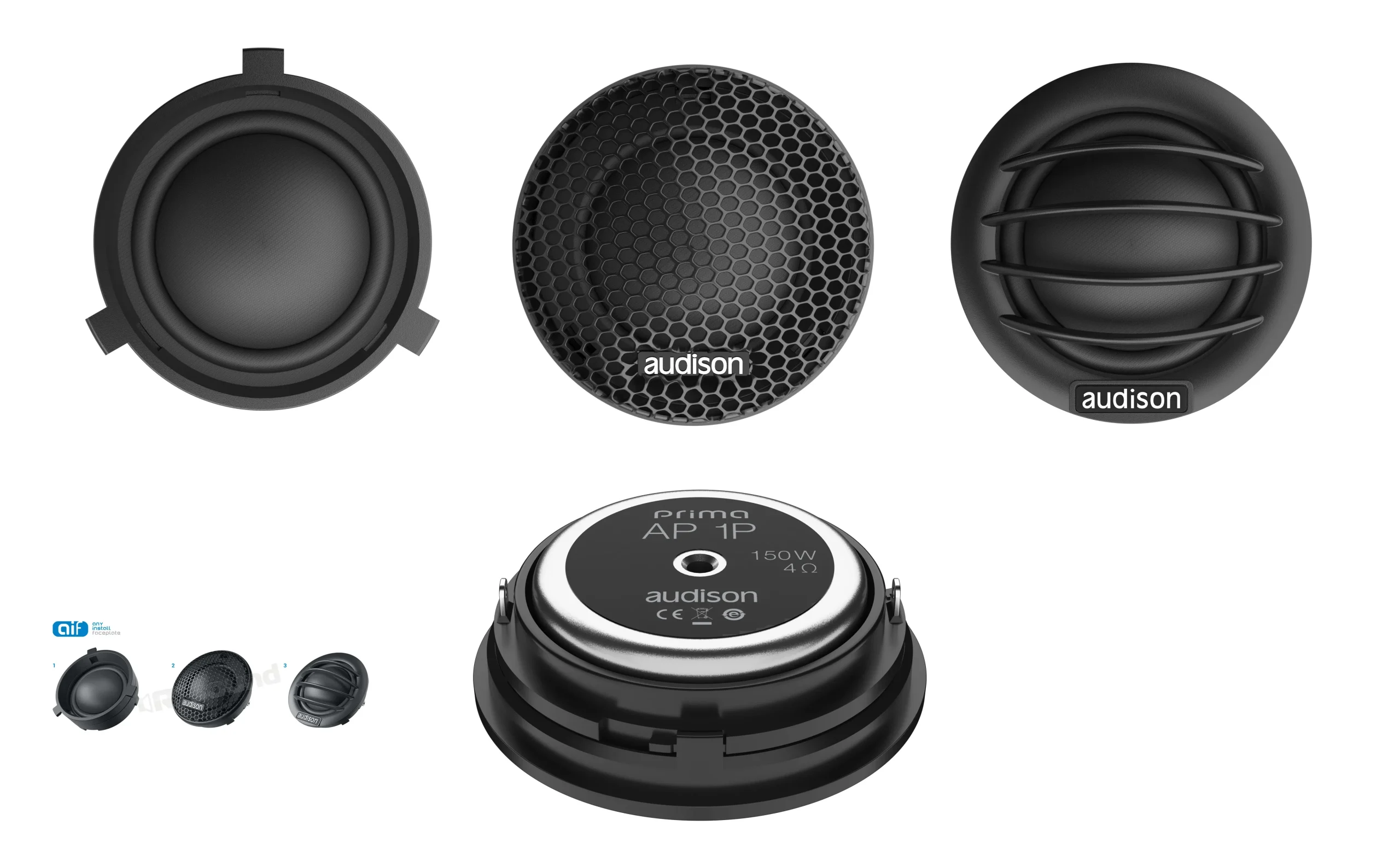

AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:
- OEM, for an easy and correct factory placement

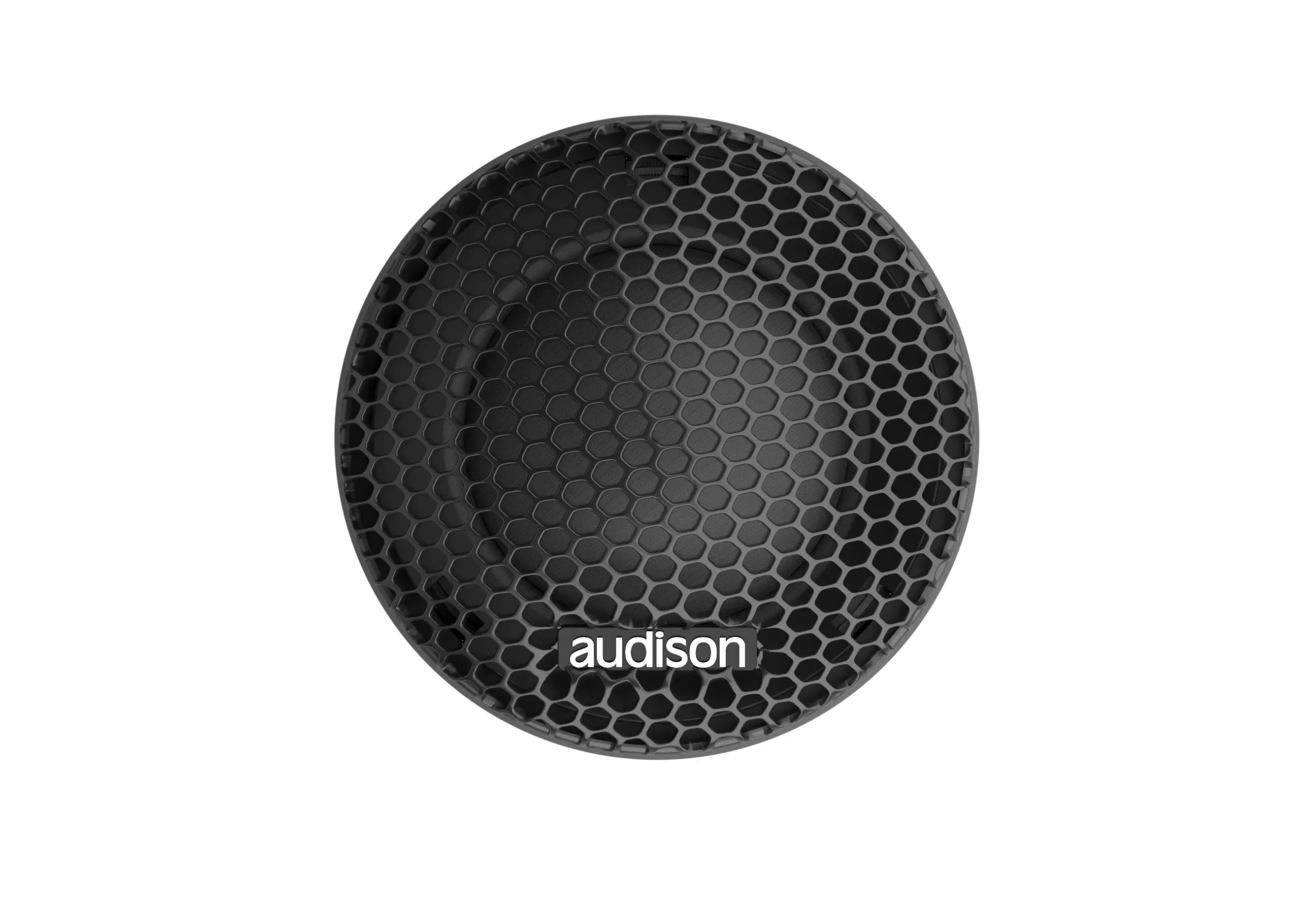

- Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations.
- Spoke grille: for maximum acoustic performance with a-pillar installations
Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario.
It is supplied with three mounting accessories that make the AP 1P install a breeze:
- Watch band;
- Double-angle cup;
- Flush Mounting Ring;
- Metal mounting spring
| Size | 25 mm |
| Power Handling – Peak | 150 W |
| Power Handling Crossover | Hi-pass filtered @2.5 kHz 12dB/oct |
| Impedance | 8 Ohm |
| Frequency Response | 1,2 ÷ 25k Hz |
| Crossover name | APCX P 2T |
| Crossover Type | High Pass 12 dB/oct. |
| Crossover point | 4 kHz |
| Crossover adjustment | Tweeter Level: 0 / +3 dB |
| Magnet Material | NEODYMIUM |
| Voice Coil Ø | 25 mm |
| Woofer Qes | 1.74 |
| Dome Material | TELOTON FIBRE |
| D | 29 mm |
| Re | 5.75 Ohm |
| Fs | 1600 Hz |
| Mms | 0.23 g |
| Cms | 0.05 mm/N |
| BL | 2.7 T•m |
| Qms | 4 |
| Qts | 1.21 |
| Le Standard | 0.04 mH |
| Spl | 92 dB |
| Dimension A | 43.7 mm |
| Dimension C | 21.8 mm |
| Dimension D | 12.2 mm |
| Dimension G | 72 mm |
| Dimension H | 45.5 mm |
| Weight | 0.067 kg |
| Crossover Weight | 0.065 kg |
- AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
- Three mounting accessories are supplied to provide a solution for any type of installation.

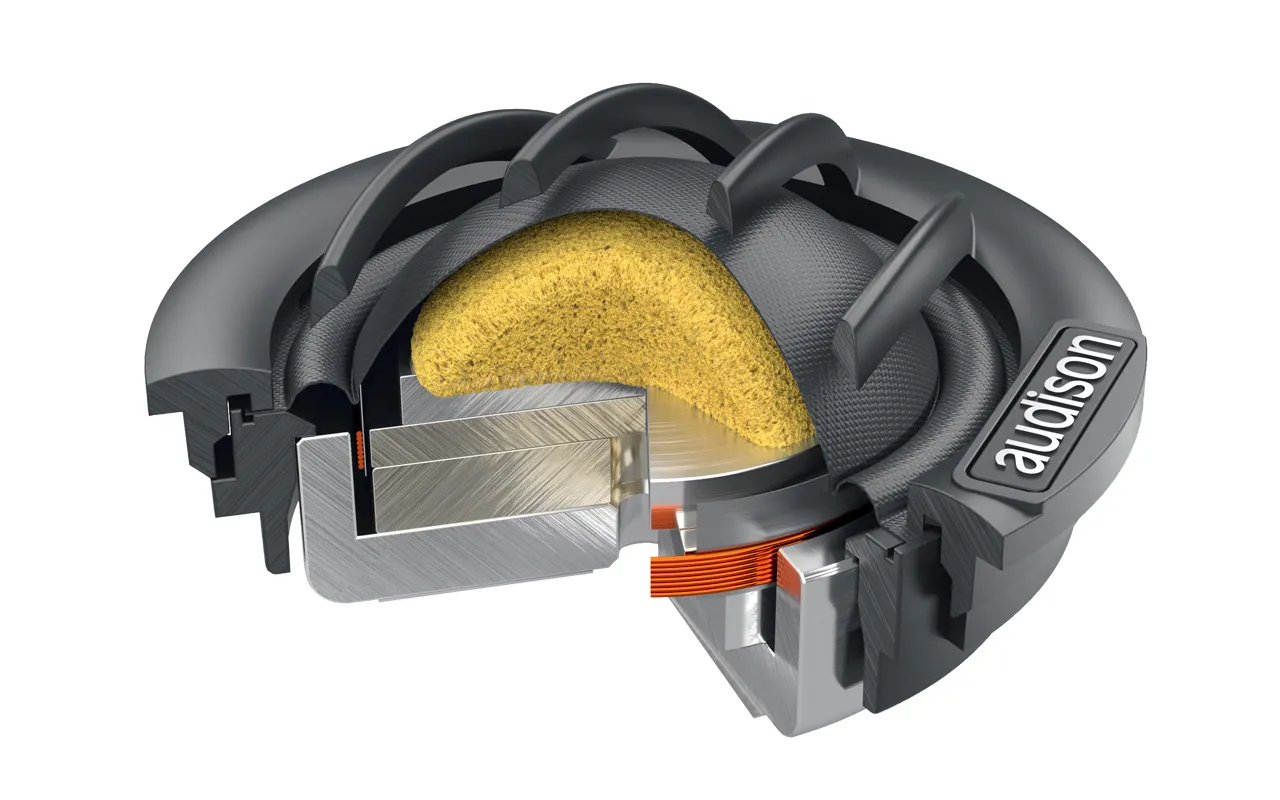

- Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
- 1 in. CCAW voice coil for superior dynamic response.
- Dome profile optimized with FEM simulations for a wide off-axis dispersion
