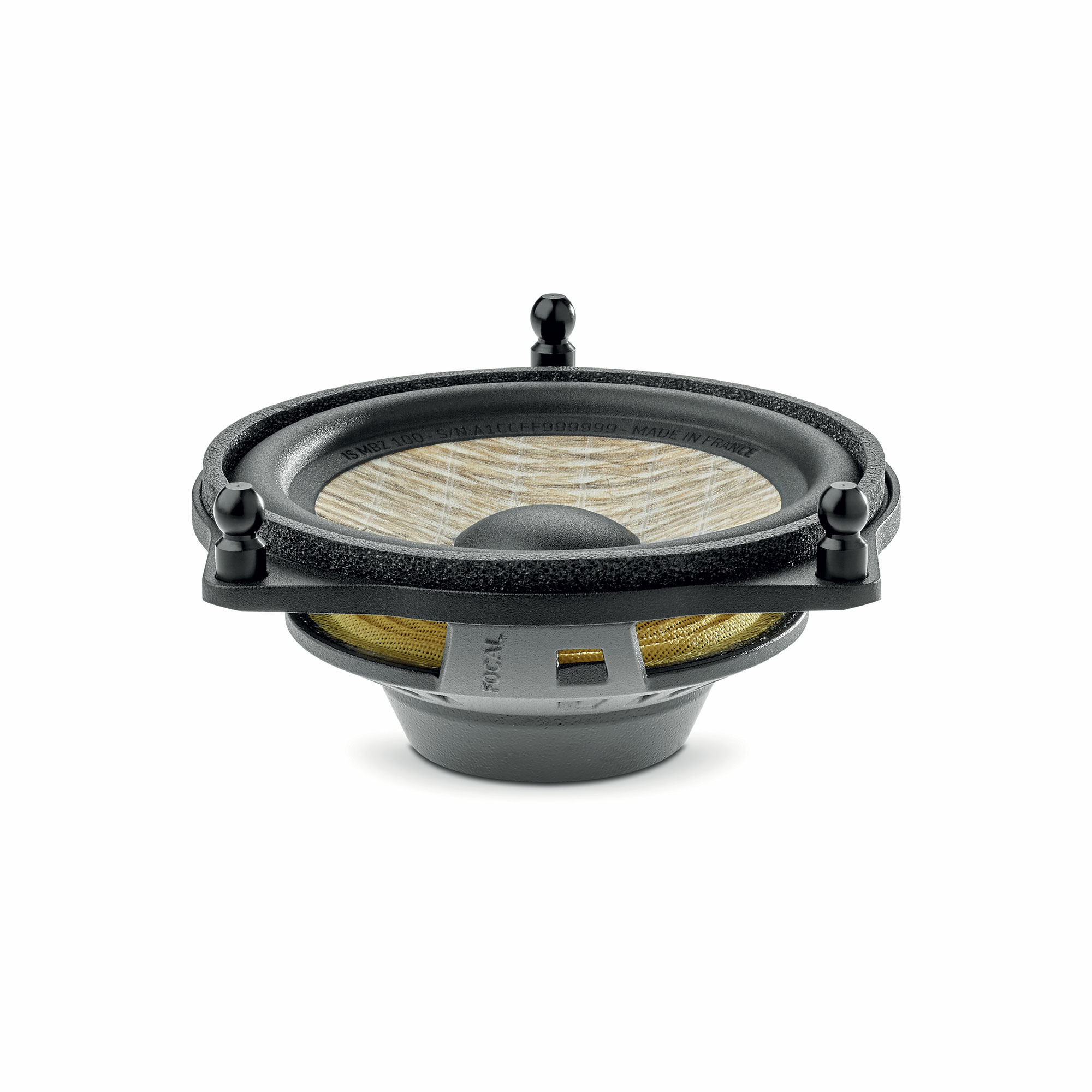

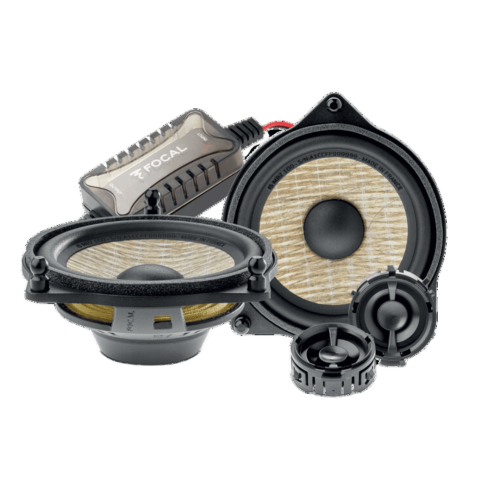

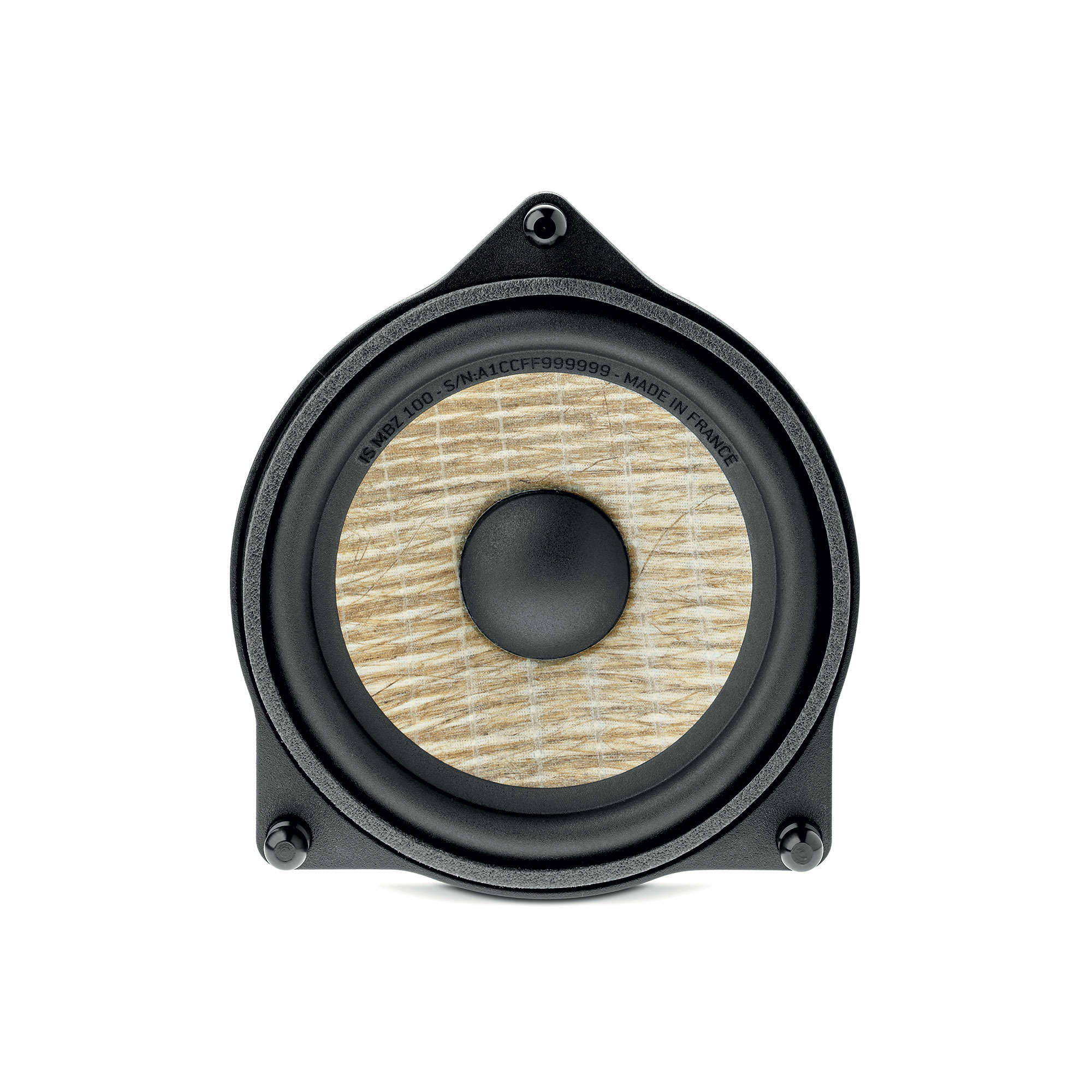

IS MBZ 100
2-way separate kit
Made in France
Dedicated to Mercedes-Benz vehicles, the IS MBZ 100 high-fidelity burst kit is a reference hi-fi solution that integrates easily and discreetly. The loudspeakers are equipped with the Flax sandwich membrane, manufactured in France, which delivers natural midrange and ultra-realistic vocals. The aluminum inverted-dome tweeter ensures faithful reproduction of high frequencies and enhanced sound spatialization. And to further optimize performance in a very small space, this kit includes a Neodymium motor.
Key points
- Developed and manufactured in France
- Quick, easy installation with no vehicle modifications required
- Invisible integration into the passenger compartment
- High-fidelity sound and high power handling capability
- Advanced loudspeaker protection
- Vehicle-specific Plug & Play connector
- Product type :Â 2-way separate kit
- Loudspeakers :
Midrange: 3.9″ - Membrane :
Flax - Medium :Â 4″
- Filter :Â Woofer: Online / Tweeter box: Online
- Frequency response (+/- 3dB) :
150Hz – 20kHz - Maximum power :Â 100 watts
- Maximum SPL (peak@1m) :
83.15 DECIBEL - Motor :Â Neodymium
- Nominal Impedance : 4 Ω
- Nominal power :Â 50 W RMS
- Sensitivity :Â 87 dB
- Surround material :Â Butyl
- RMS power :Â 50 W RMS
- Weight :Â 250 g / 0.55 lb
- Cut-Out diameter :Â 101 mm / 4 in
- Depth behind surface (Mounting depth) :Â 33.8 mm / 1.3 in
- Plug & Play ISO cables supplied :Â Yes

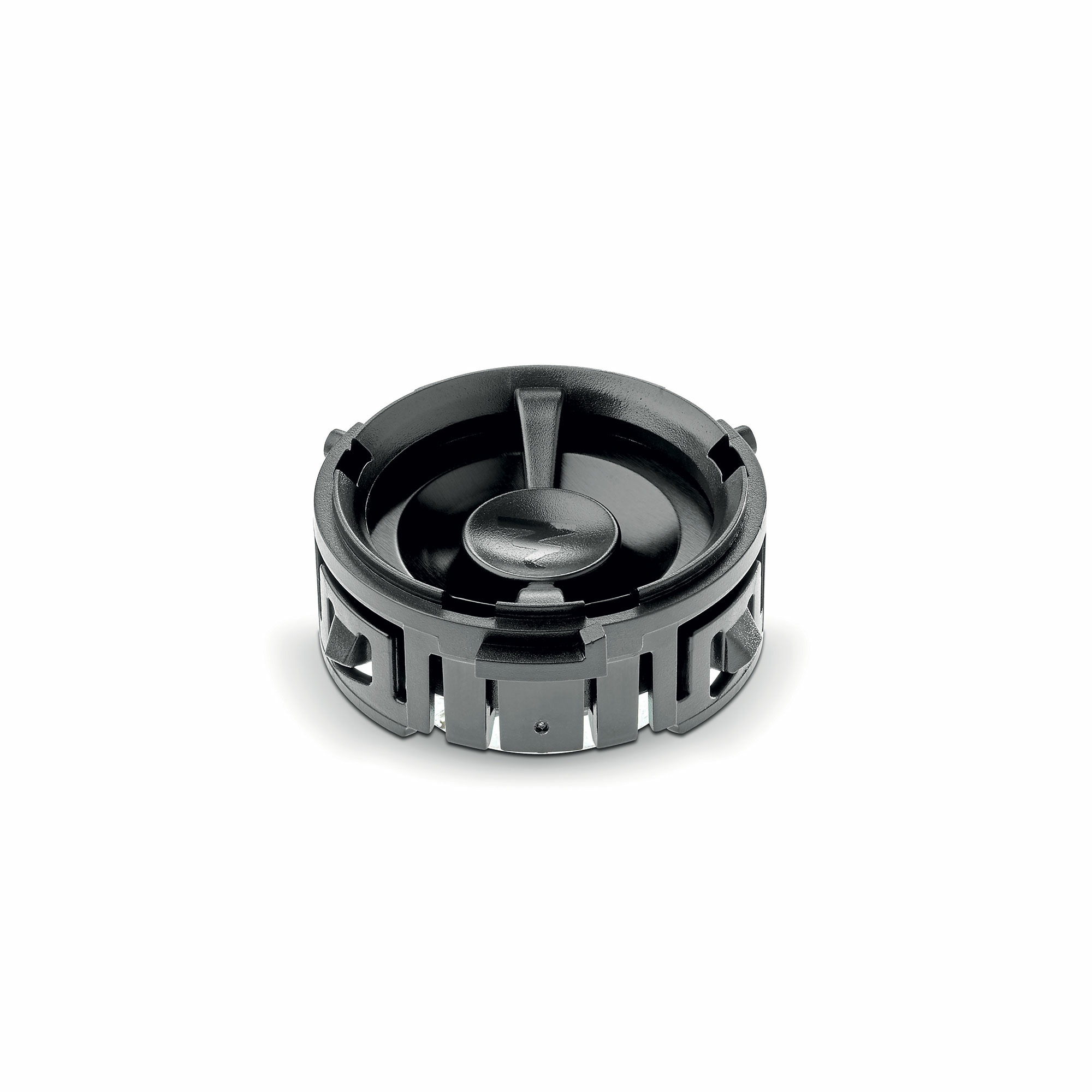

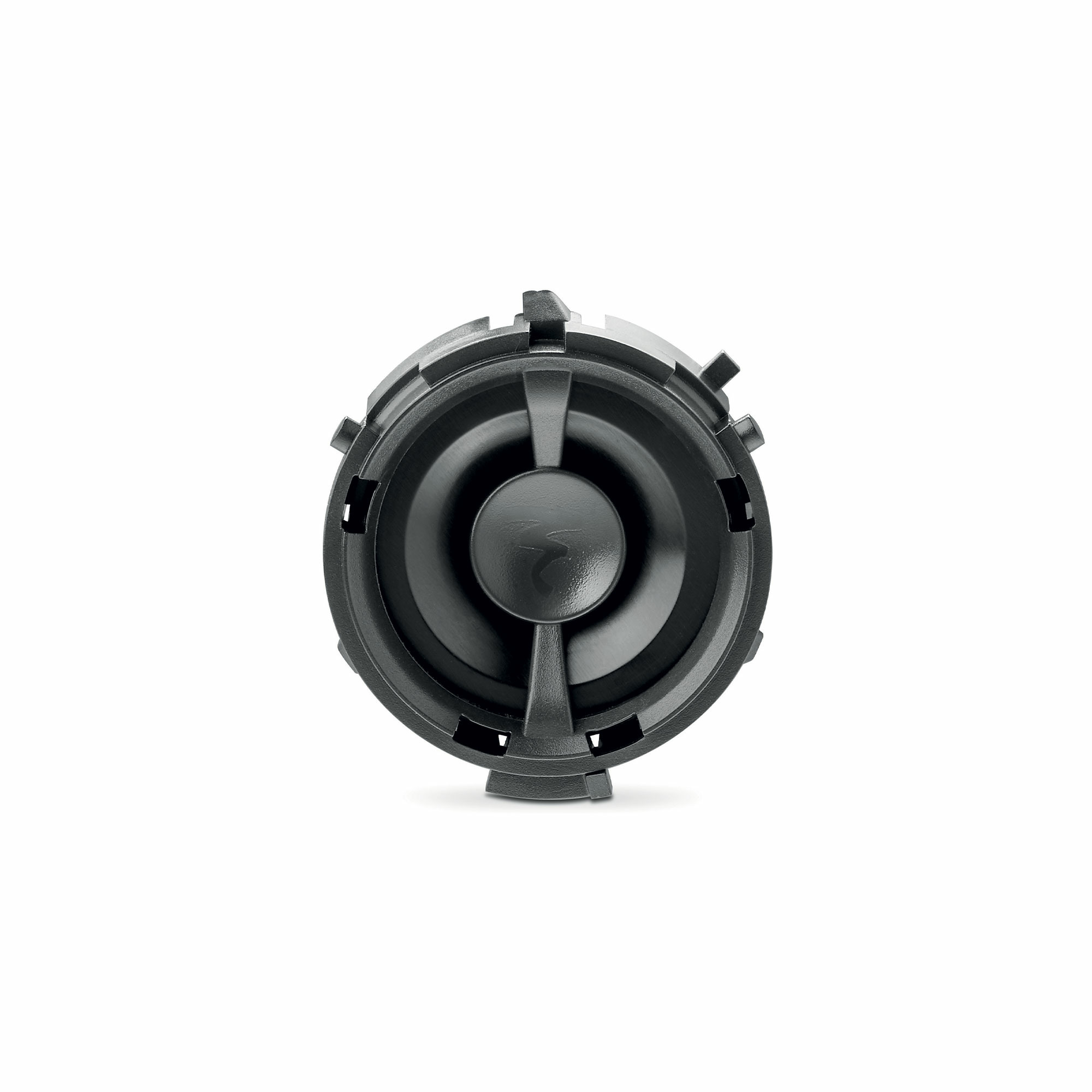

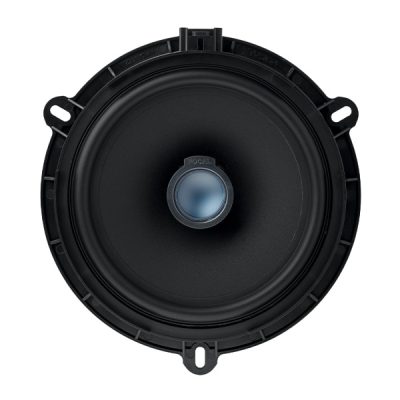

Aluminum tweeter
Treble finesse
Manufactured by Focal, the inverted dome tweeter has been a signature since 1981. It offers the property of being a true micro-loudspeaker. The curvature of the dome is much less pronounced than that of positive domes. This results in better space dispersion and very low directionality, unlike ribbon tweeters. The inverted dome tweeter therefore generates unrivalled dynamics. In addition to dome shapes, our engineers also work on materials. In this case, they chose aluminum, which increases dome rigidity and reduces distortion. And to perfect the spatialization of sound, a waveguide has been developed. Horizontal frequency response is within +/- 0.5 dB. This performance guarantees an incredibly stable soundstage.

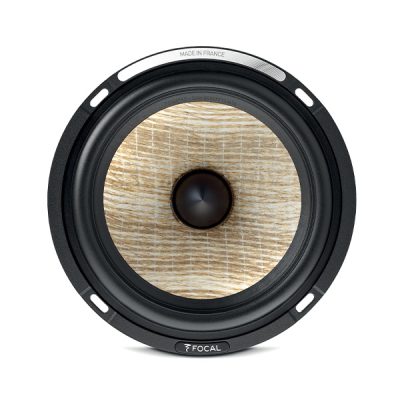

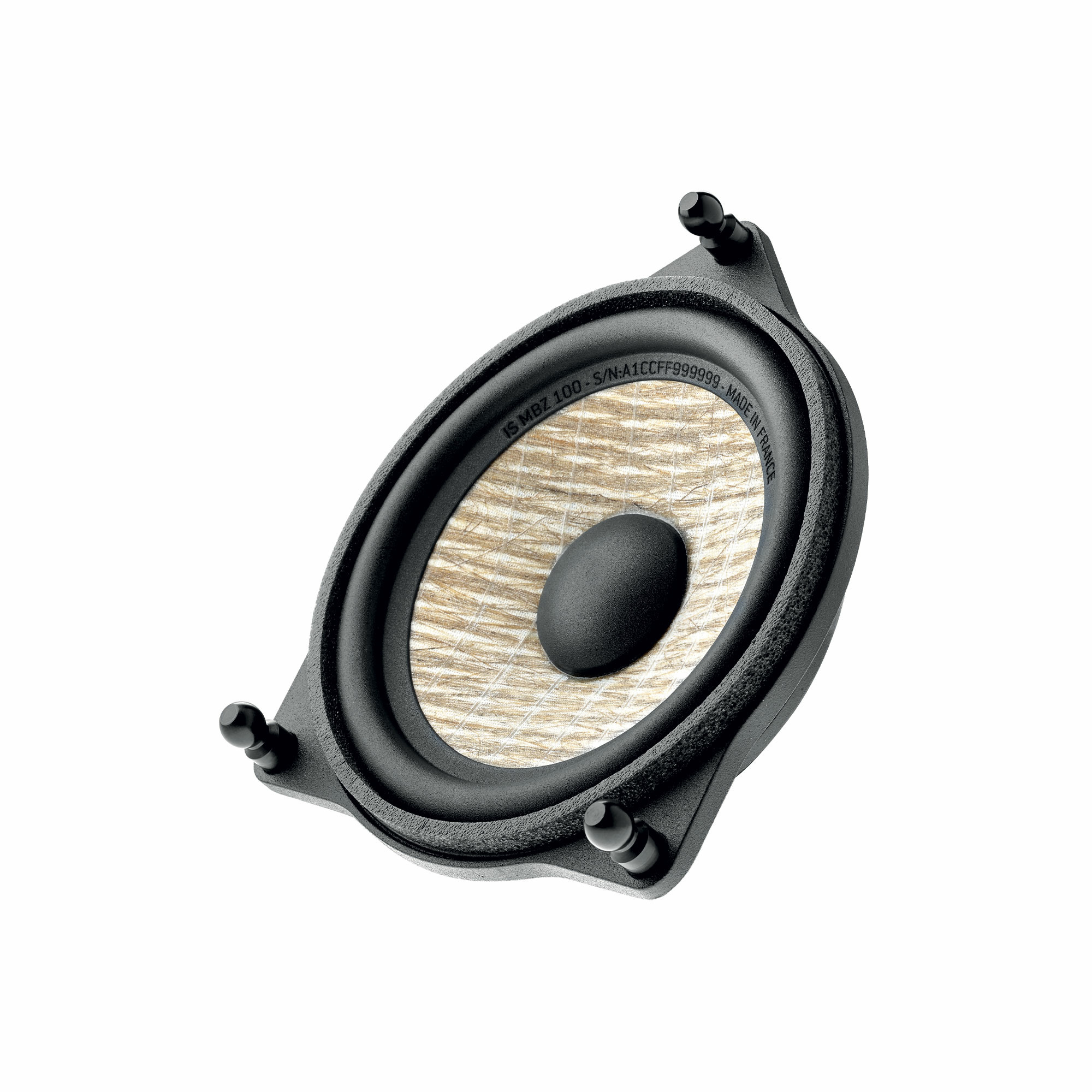

Flax membrane
Purity and precision of sound
As the key component of a loudspeaker, the membrane is at the heart of our acoustic engineers’ research. After more than five years of research and development, in 2013 Focal unveiled an exclusive membrane made from flax. Patented, this Flax cone is a sandwich made of very high quality French flax fibre placed between two thin sheets of glass fibre. It satisfies all the criteria of a high-fidelity membrane: lightness to offer good dynamics, rigidity to hold the bass and damping to deliver a neutral, natural, uncolored sound. It is an emblematic Focal innovation in many hi-fi products.
